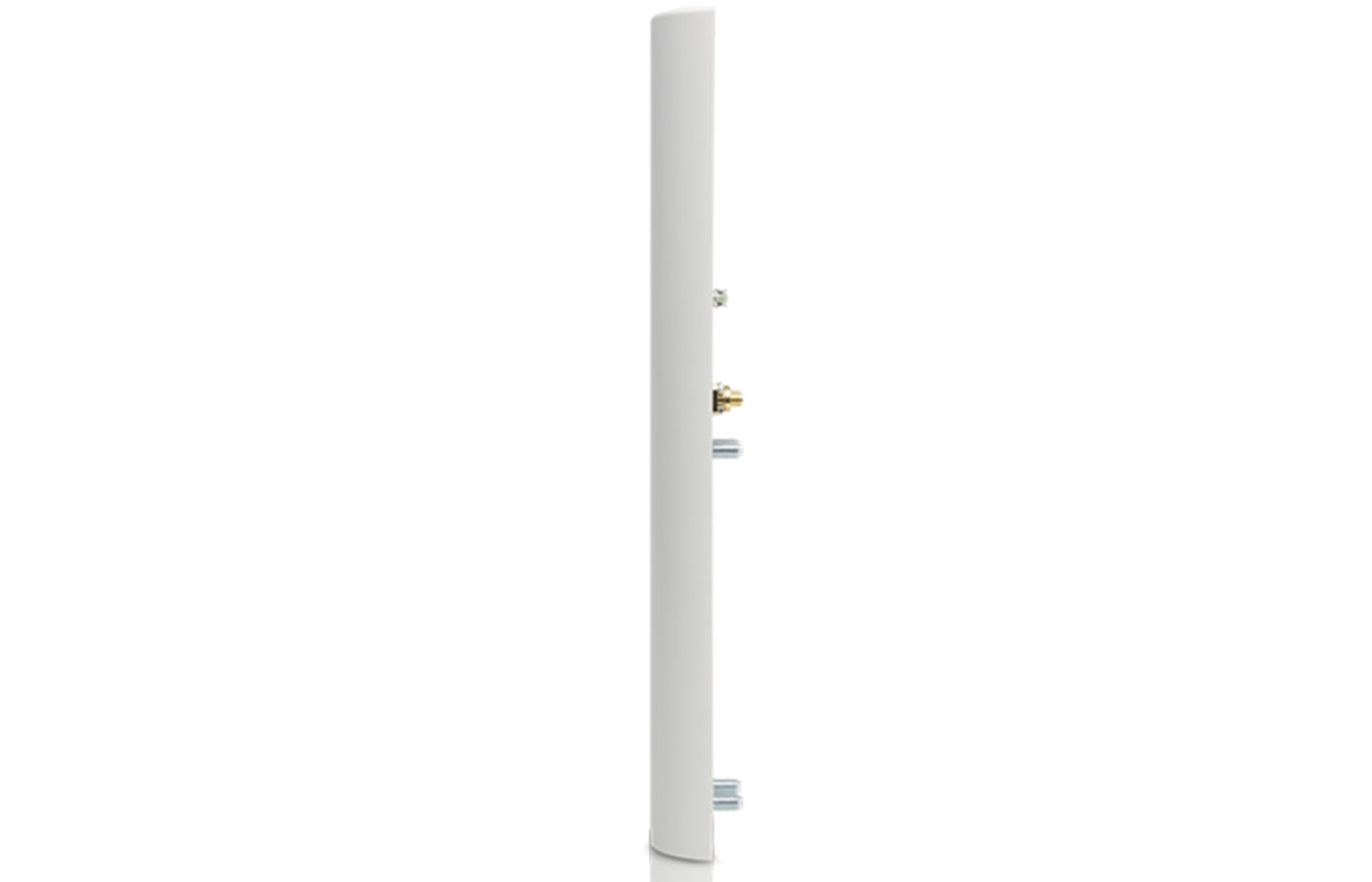

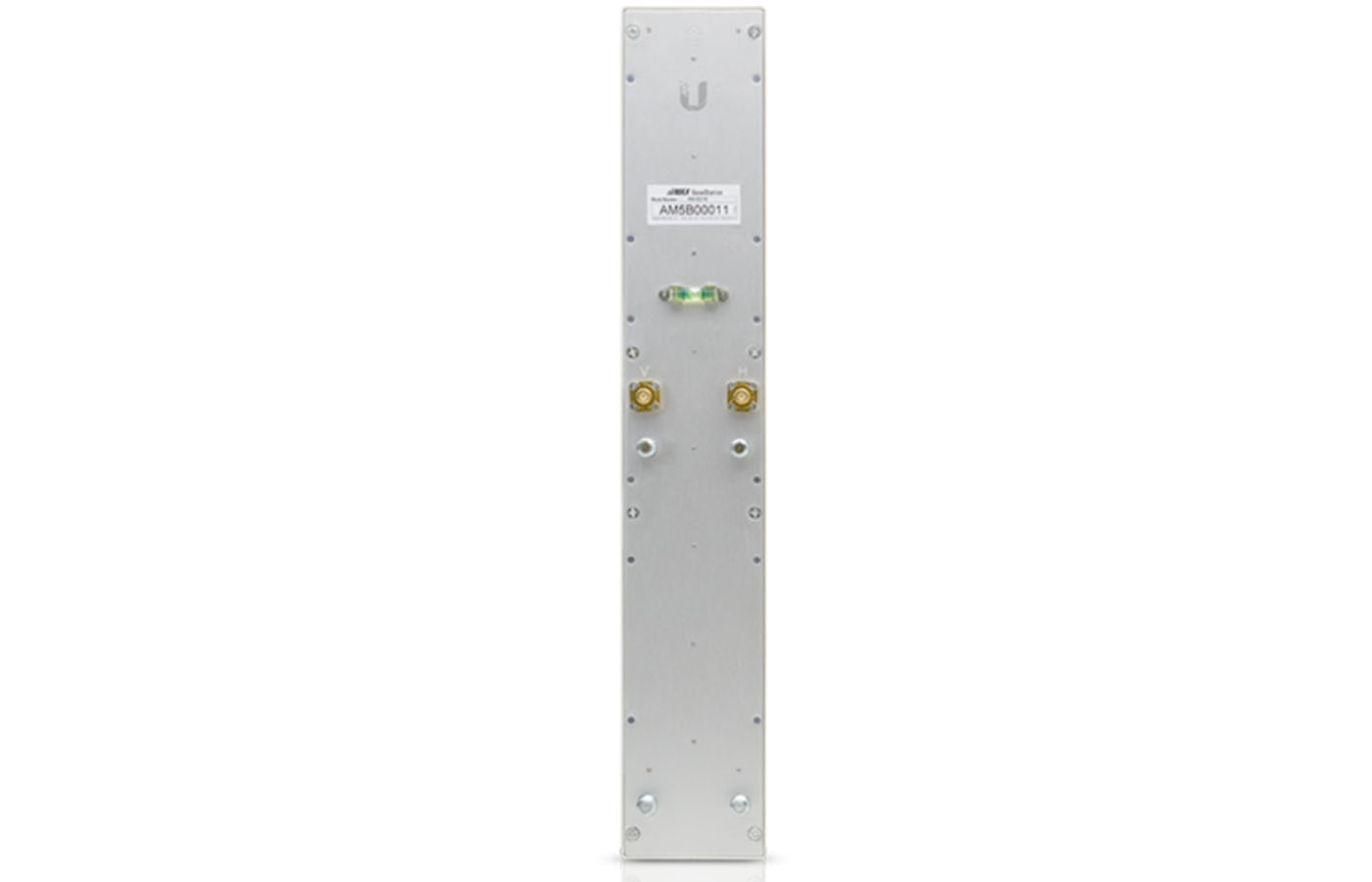

airMAX Sector 5 GHz, 120º, 16 dBi Antenna

Código.: AM-5G16-120

Sobre o produto:

antena de setor airMAX® 2×2 BaseStation Emparelhe a antena de setor airMAX® com uma Rocket ™ M BaseStation para cobertura de setor em redes Point-to-MultiPoint (PtMP).

Antena Sector airMAX® 2×2 BaseStation Emparelhe a antena Sector airMAX® com uma Rocket ™ M BaseStation para cobertura de setor em redes Point-to-MultiPoint (PtMP).

AM-5G16-120
Dimensions (mm)	367 x 63 x 41
Weight	1.1 kg
Frequency Range	5.10 – 5.85 GHz
Gain	15.0 – 16.0 dBi
HPOL Beamwidth	137° (6 dB)
VPOL Beamwidth	118° (6 dB)
Electrical Beamwidth	8°
Electrical Downtilt	4°
Max. VSWR	1.5:1
Wind Survivability	125 mph
Wind Loading	6 lbf @100 mph
Polarization	Dual-Linear
Cross-pol Isolation	22 dB Min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
