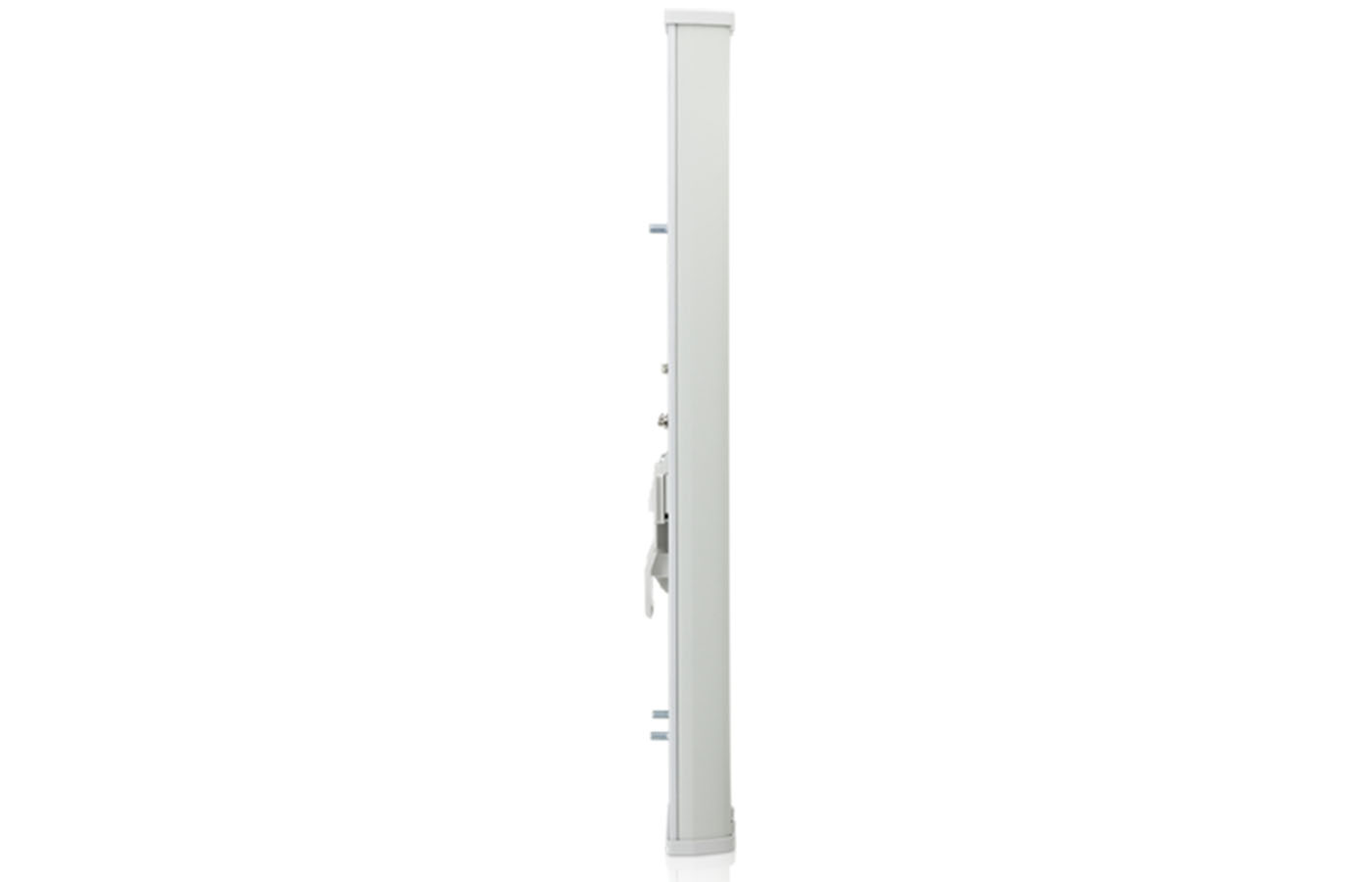

airMAX Sector 5 GHz, 90º, 20 dBi Antenna

Código.: AM-5G20-90

Sobre o produto:

Antena Sector airMAX® 2×2 BaseStation Emparelhe a antena Sector airMAX® com uma Rocket ™ M BaseStation para cobertura de setor em redes Point-to-MultiPoint (PtMP)

Antena Sector airMAX® 2×2 BaseStation Emparelhe a antena Sector airMAX® com uma Rocket ™ M BaseStation para cobertura de setor em redes Point-to-MultiPoint (PtMP).

AM-5G20-90
Dimensions (mm)	700 x 135 x 70
Weight	5.9 kg
Frequency Range	5.15 – 5.85 GHz
Gain	19.4 – 20.3 dBi
HPOL Beamwidth	91° (6 dB)
VPOL Beamwidth	85° (6 dB)
Electrical Beamwidth	4°
Electrical Downtilt	2°
Max. VSWR	1.5:1
Wind Survivability	125 mph
Wind Loading	26 lbf @ 100 mph
Polarization	Dual-Linear
Cross-pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
