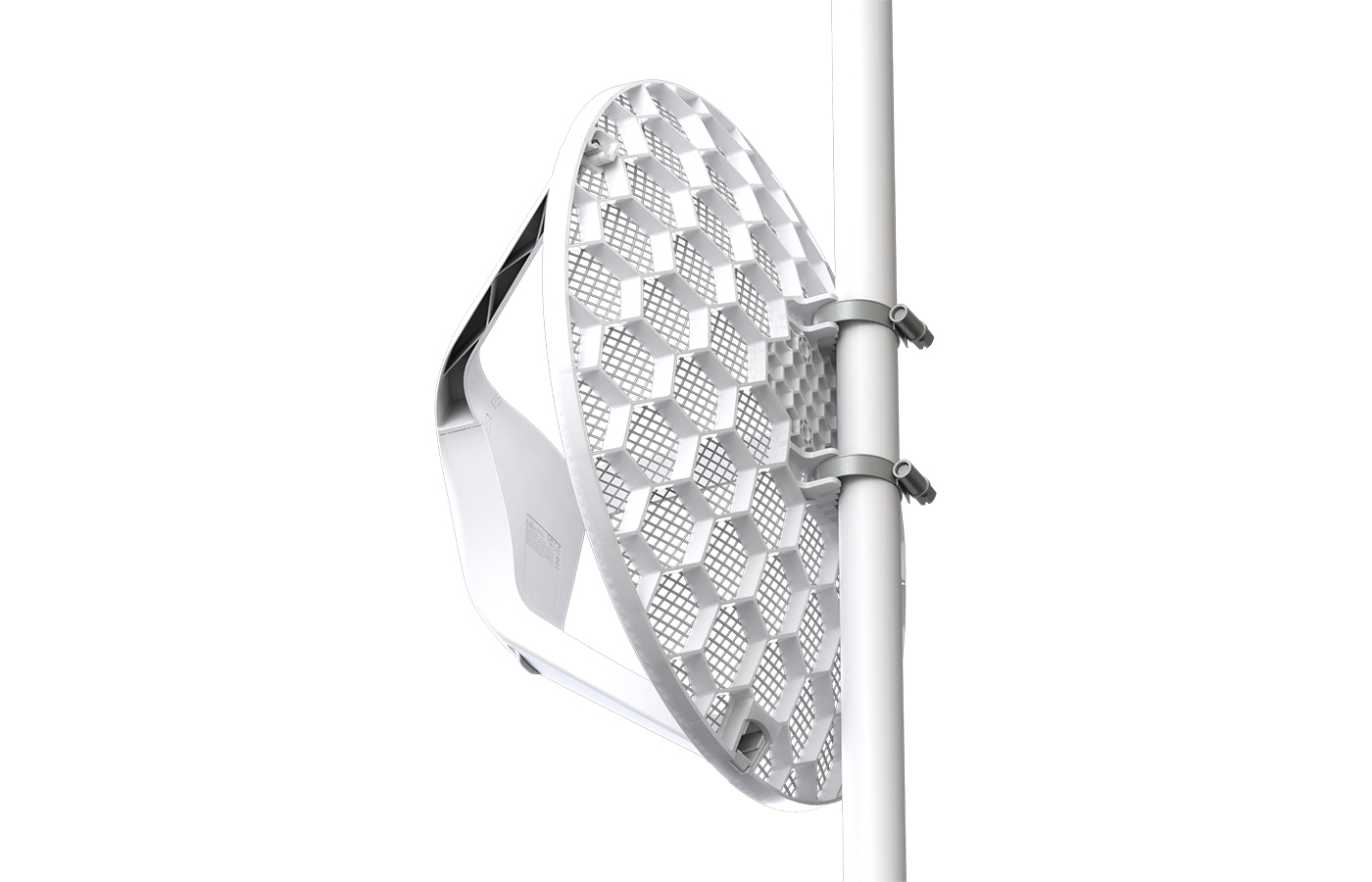

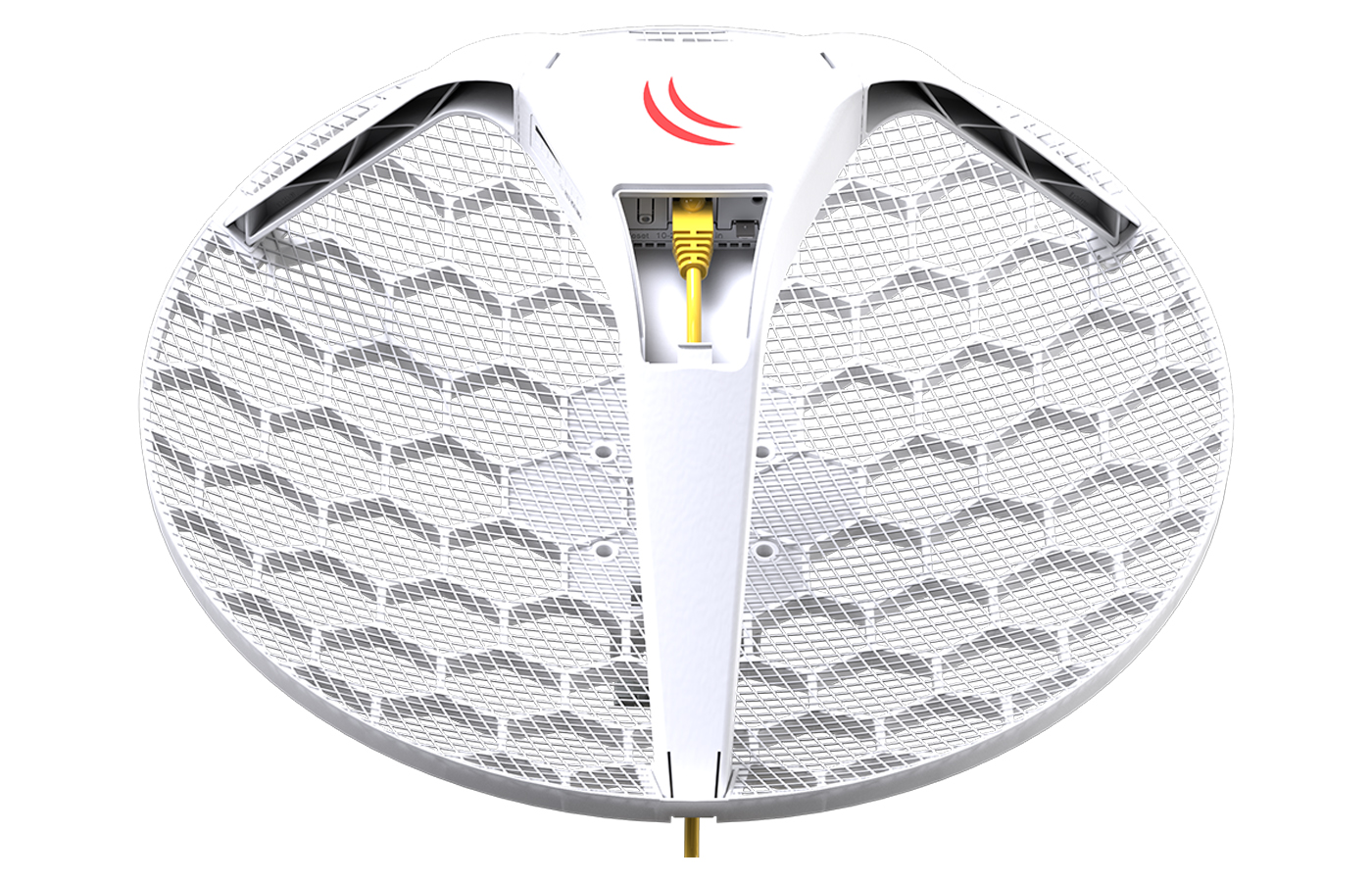

O LHG 5 é um dispositivo sem fio 802.11a/n compacto e leve de 5 GHz com uma antena de grade de 24,5 dBi de polarização dupla integrada a um preço revolucionário. É perfeito para links ponto a ponto ou para uso como CPE a distâncias maiores e suporta o protocolo Nv2 TDMA.

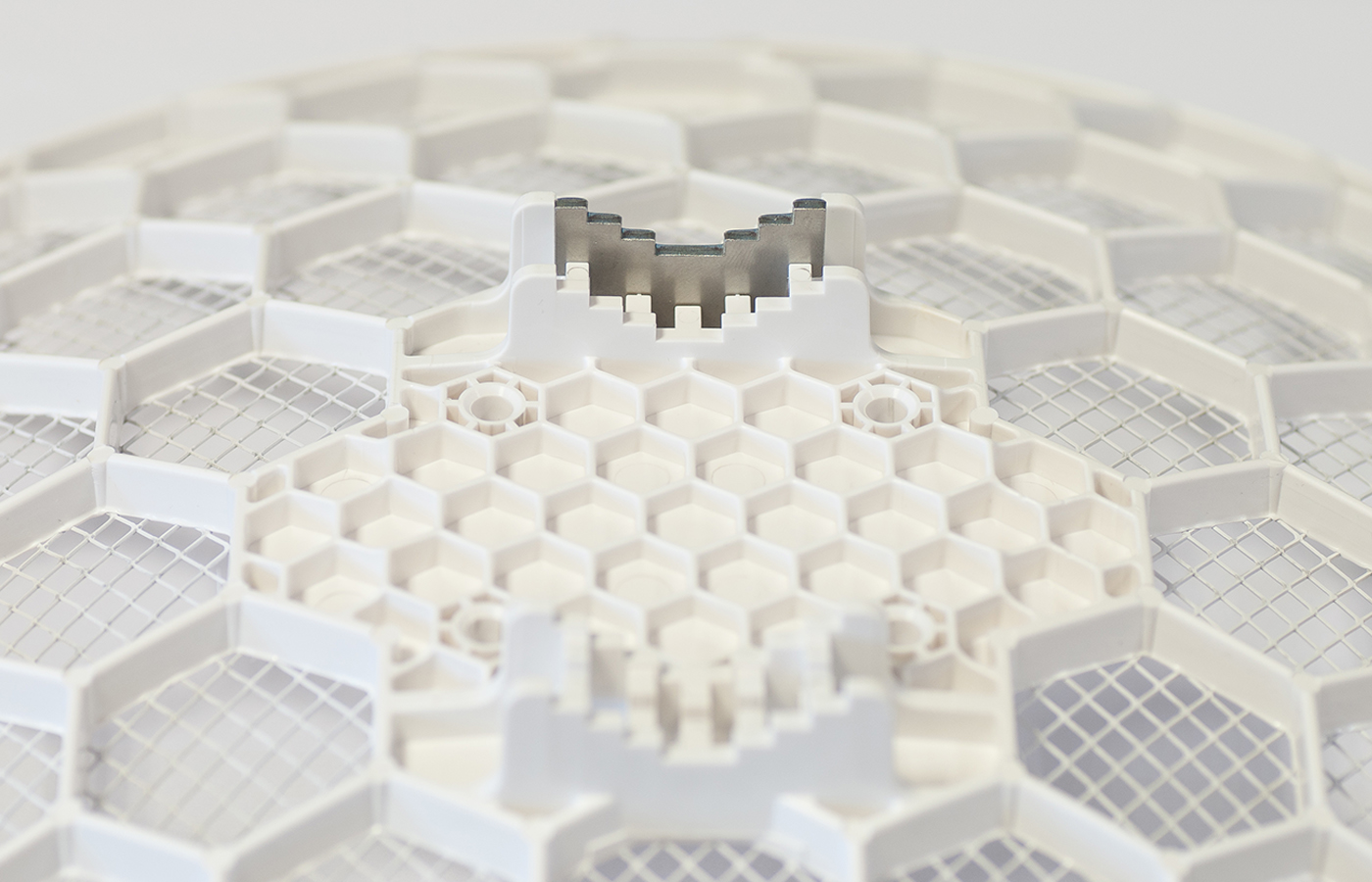

O design da grade garante proteção contra o vento, e o fato de o elemento da antena estar embutido na unidade sem fio não significa perda de cabos.
Specifications
| Details |
| Product code |
RBLHG-5nD |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
Ø 391 x 222 mm; package 450 x 450 x 145 mm |
| License level |
3 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
|
|
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
11-30 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
6 W |
Wireless
| Details |
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n |
| Antenna gain dBi for 5 GHz |
24.5 |
| Wireless 5 GHz chip model |
AR9344 |
| Wireless 5 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
25 |
-96 |
| 54MBit/s |
20 |
-80 |
| MCS0 |
25 |
-96 |
| MCS7 |
19 |
-75 |
