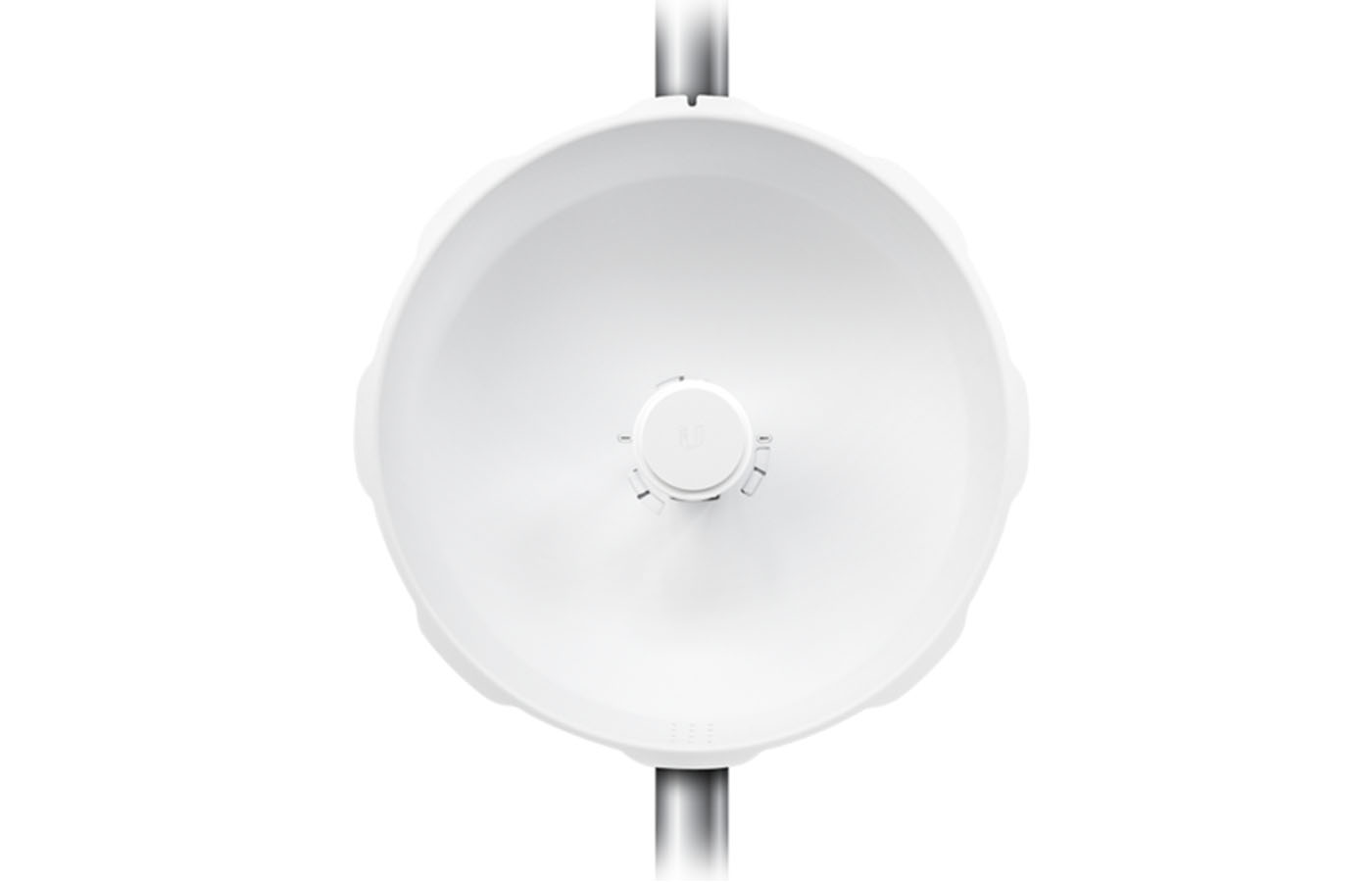

Ponte airMAX® de 5 GHz com refletor isolado de RF Incorporando engenharia avançada com tecnologia airMAX® proprietária, o PowerBeam® ISO é ideal para implantações que exigem desempenho máximo e isolamento de RF.
Características:
– Desempenho de feixe de antena altamente eficiente
– Blindagem Superior e Isolamento RF
– Tecnologia avançada Ubiquiti® airMAX®
– Taxa de transferência real TCP / IP de até mais de 150 Mbps
– Conjunto inovador de encaixe e trava
– Tecnologia proprietária InnerFeed ™
| PBE-M5-300-ISO |
| Dimensions |
364 x 364 x 276 mm (14.33 x 14.33 x 10.87″) |
| Weight |
2.55 kg (5.62 lb) |
| Power Supply |
24V, 0.5A PoE |
| Max. Power Consumption |
6W |
| Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range |
20-26VDC |
| Operating Frequency |
Worldwide: 5170 – 5875 MHz
US: 5725 – 5850 MHz |
| Gain |
22 dBi |
| Networking Interface |
(1) 10/100 Ethernet Port |
| Processor Specs |
Atheros MIPS 74Kc, 560 MHz |
| Memory |
64 MB DDR2, 8 MB Flash |
| LEDs |
(1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs |
Software-Adjustable to Correspond to Custom RSSI Levels |
| Channel Sizes |
5/8/10/20/30/40 MHz |
| Polarization |
Dual Linear |
| Enclosure |
Outdoor UV Stabilized Plastic |
| Mounting |
Pole-Mount Kit Included |
| ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature |
-40 to 70° C (-40 to 158° F) |
| Operating Humidity |
5 to 95% Non-Condensing |
| Wireless Approvals |
FCC, IC, CE |
| RoHS Compliance |
Yes |
| Salt Fog Test |
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test |
IEC 68-2-6 |
| Temperature Shock Test |
IEC 68-2-14 |
| UV Test |
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test |
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
